AIR:
TASK & VISITOR CHAIRS

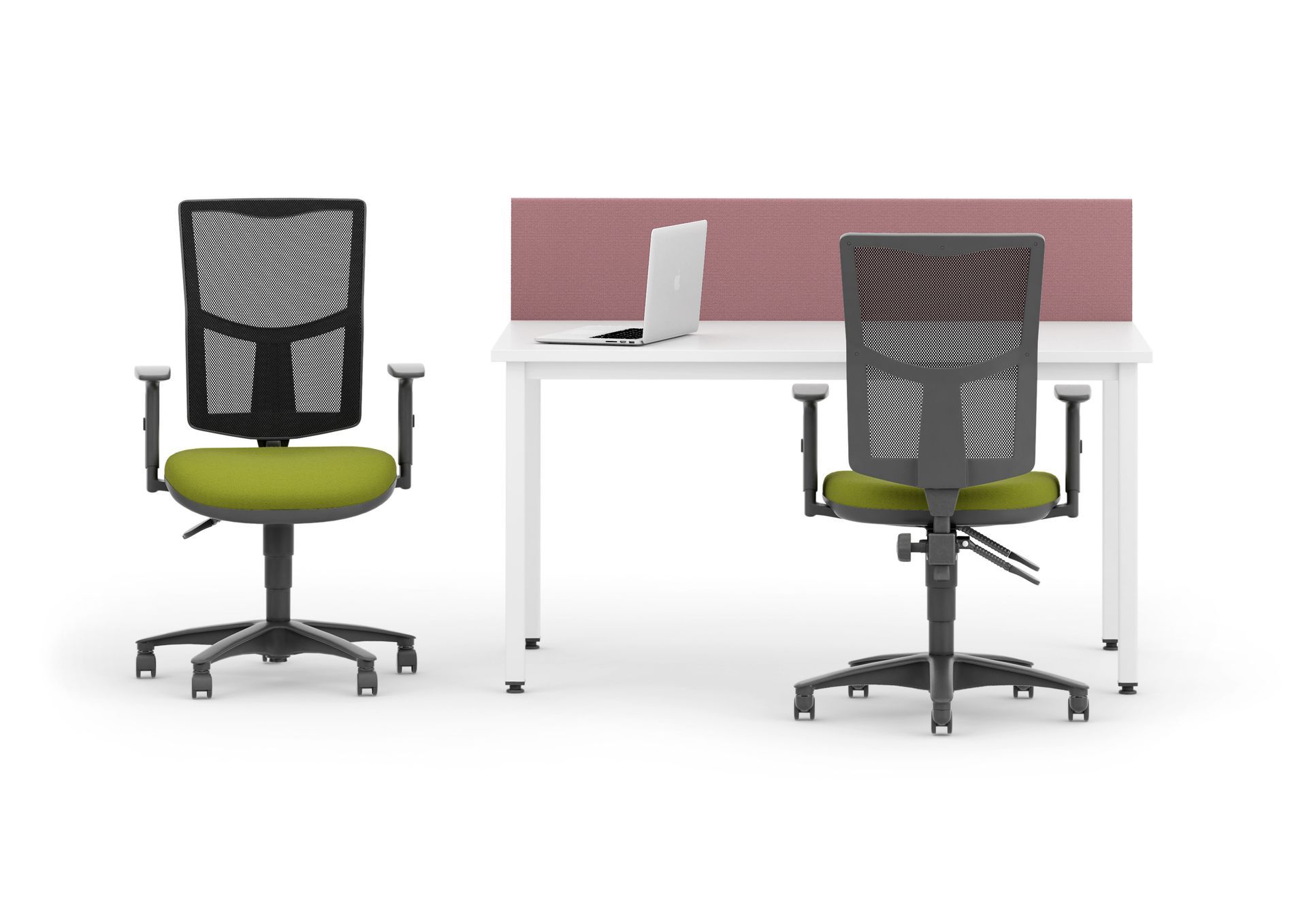

Air is a family of task and visitor seating with a range of customisable features and finishes.
Air task seating features a height adjustable back and can be specified with fixed or height adjustable arms. An upholstered seat can be paired with a choice of black meshes or a ribbed upholstered back. The range also includes complementary cantilever chairs that are ideal for visitor or meeting spaces.
The range
Features
BASE & CASTORS
Five star glass filled nylon base (630 mm diameter)
50 mm twin wheel hooded polyamide castors
Load capacity 50 kgs per castor (total 250 kgs)
GAS LIFT
Black outer support cylinder with 120 mm of adjustment suitable for users up to 150 kgs
STANDARD MECHANISM
Back rake mechanism
Back angle adjustment (300 mm) with infinite locking
SEAT
Upholstered seat pad, Combustion Modified High Resilience (CMHR) foam with pre formed laminated birch inner wood and black polypropylene under seat.
MESH BACK
Steel internal back frame
Height adjustable with 50 mm adjustment
Cover composition 100% polyester
RIBBED BACK
Steel internal webbed back frame
Height adjustable with 50 mm adjustment
Cover embossed fabric
ARMS
Adjustable arms (height)
Polyurethane pads
OPTIONS
INDEPENDENT MECHANISM
Back angle adjustment (23º) with infinite locking
Seat angle adjustment (10º) with infinite locking
SEAT SLIDE
Seat depth adjustment (50 mm range)
ARMS
Fixed arms
2D adjustable arms
Foldaway adjustable arms
BASE FINISHES
Polished aluminium base
Silver painted aluminium base (RAL9006).
CASTORS & GLIDES
Glides
Soft wheel castors
Brake loaded or un-loaded castors.
MISC OPTIONS & NOTES
Coloured mesh (subject to minimum order quantity)
Matching cantilever chairs are available
ENVIRONMENTAL
CO2 DATA
The organisational Green House Gas intensity for an item in this range, based on average product weight and total Green House Gas Emissions recorded within the 1st June 2022 to 31st May 2023 company inventory, is 0.0099 tonnes CO2e/item. (QC: Blue Marble Environmental Partnerships Ltd)
RECYCLED CONTENT
30% (estimated)
RECYCLABLE CONTENT
95-98%
Plastic components >25 g are labelled in accordance with ISO 11469.
POLICY
Pledge Chairs prefer where possible to manufacture a complete product from raw materials, constructing wooden components and panels, steel fabricated frames, and upholstered products at our site in Leighton Buzzard, Bedfordshire, UK.
We are committed to the efficient use of energy and continually review our environmental impact, seeking to utilise technologies which minimise energy and material consumption in our products and services.
RESOURCES
Click to download images, CAD blocks, literature or certification documents.
Please get in touch if you would like any more information on this, or any other Pledge range.
PRODUCT TECHNICAL DATA

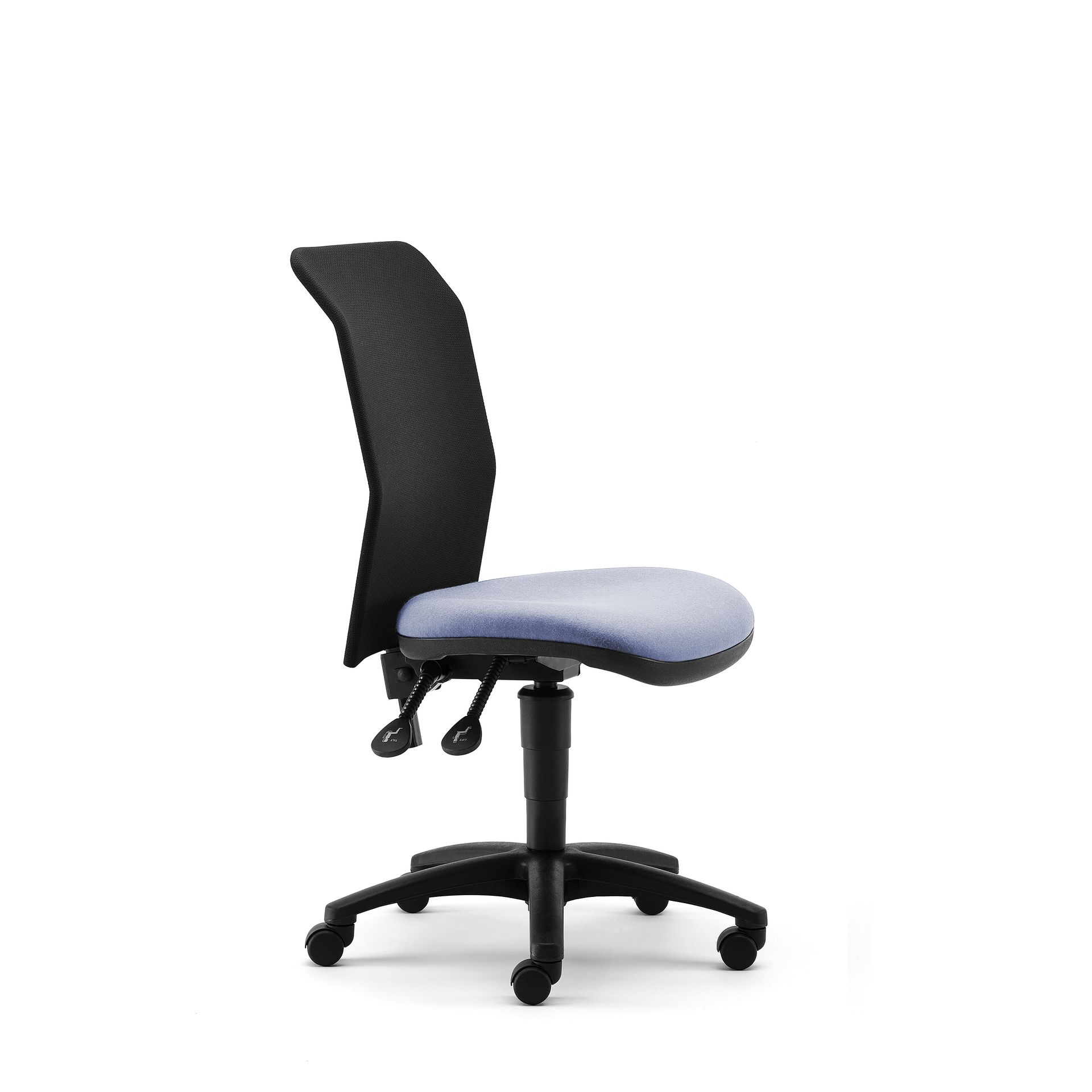

AIR01B
Mesh back task chair
No arms
Back rake mechanism
Height adjustable mesh back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 480 |
| Back Width | 420 |
| WEIGHT | 11.2 kg |
|---|

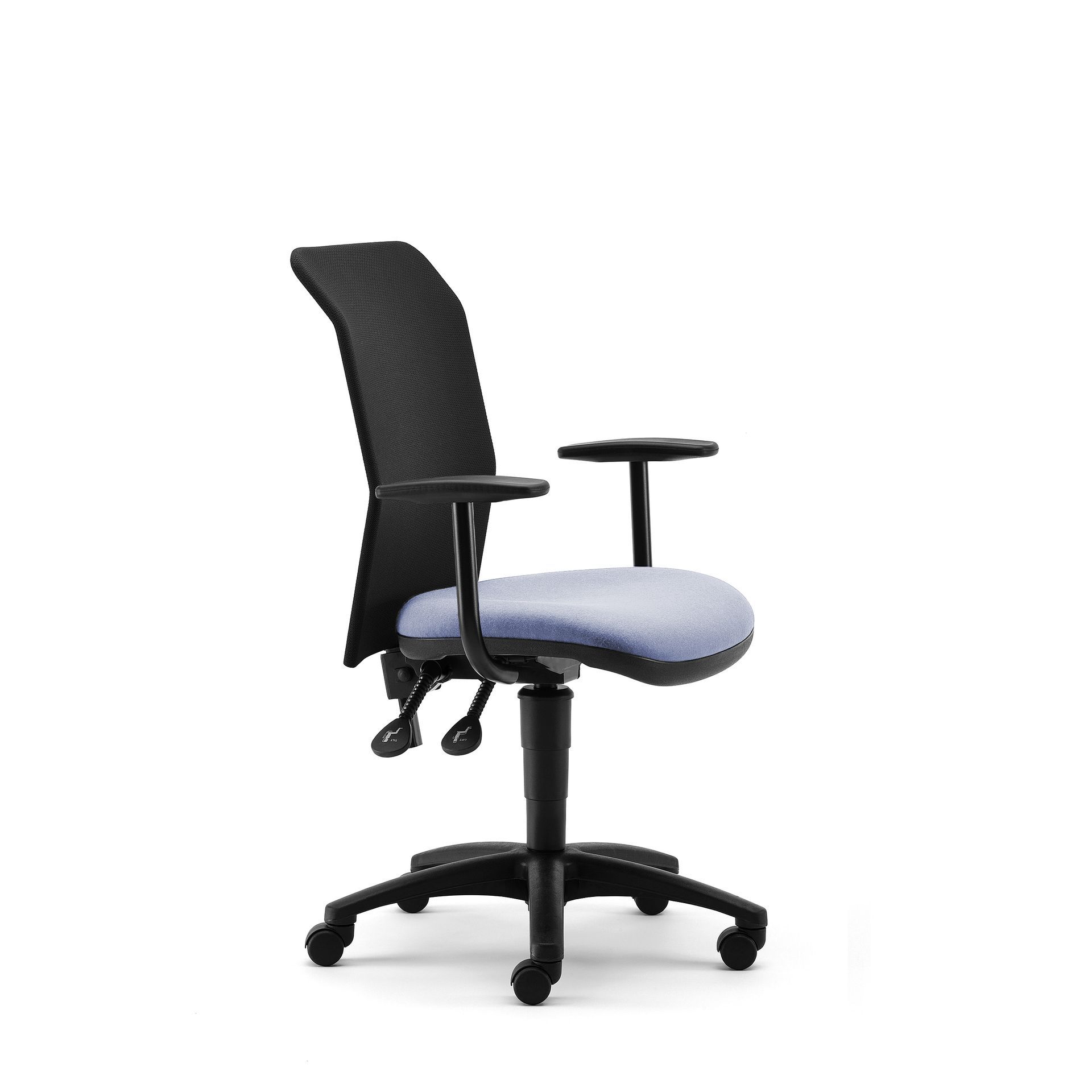

AIR02b
Mesh back task chair
Fixed T arms
Back rake mechanism
Height adjustable mesh back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| WEIGHT | 12.6 kg |
|---|

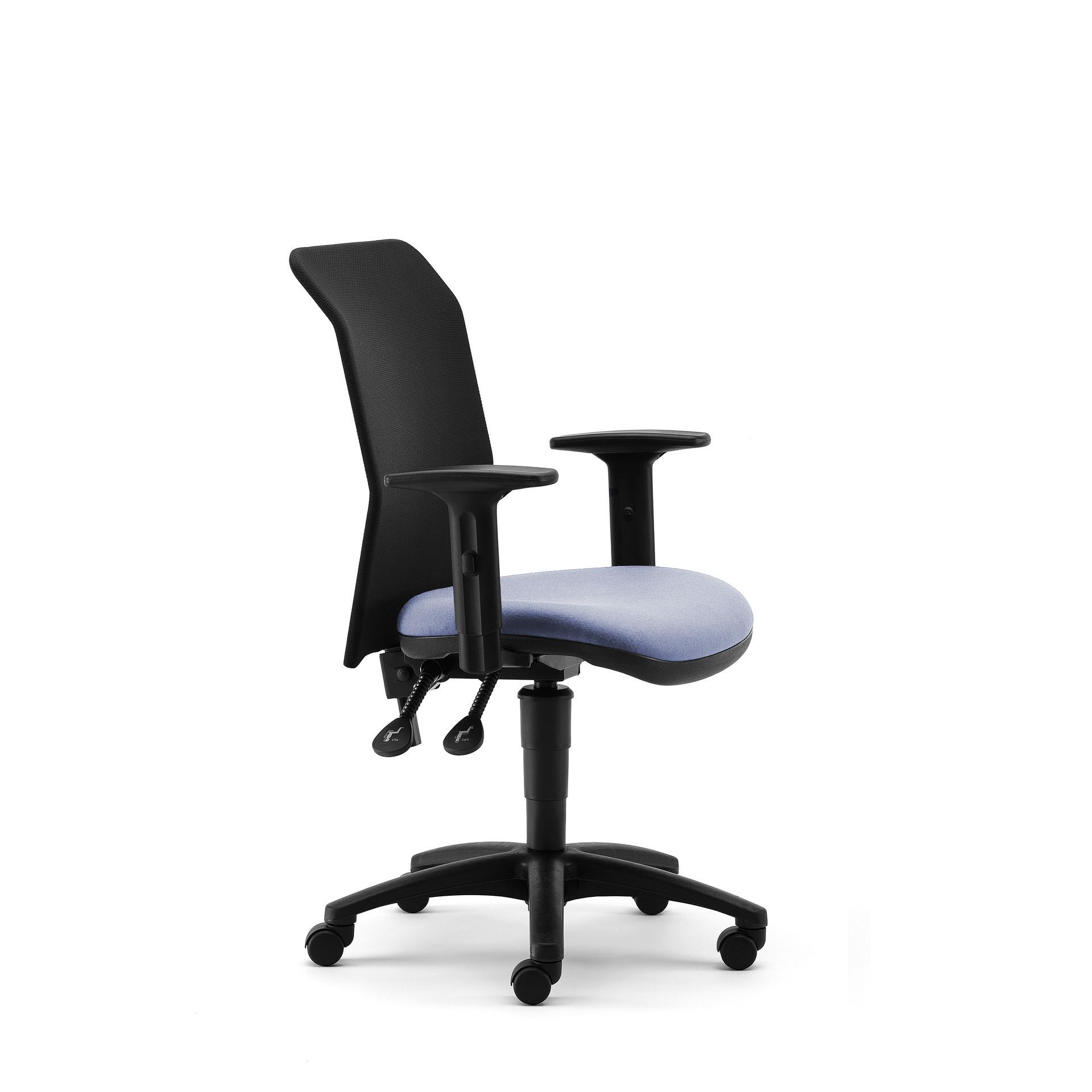

AIR03B
Mesh back task chair
Height adjustable arms
Back rake mechanism
Height adjustable mesh back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| Arm Height | 190 - 270 |
| WEIGHT | 13.0 kg |
|---|

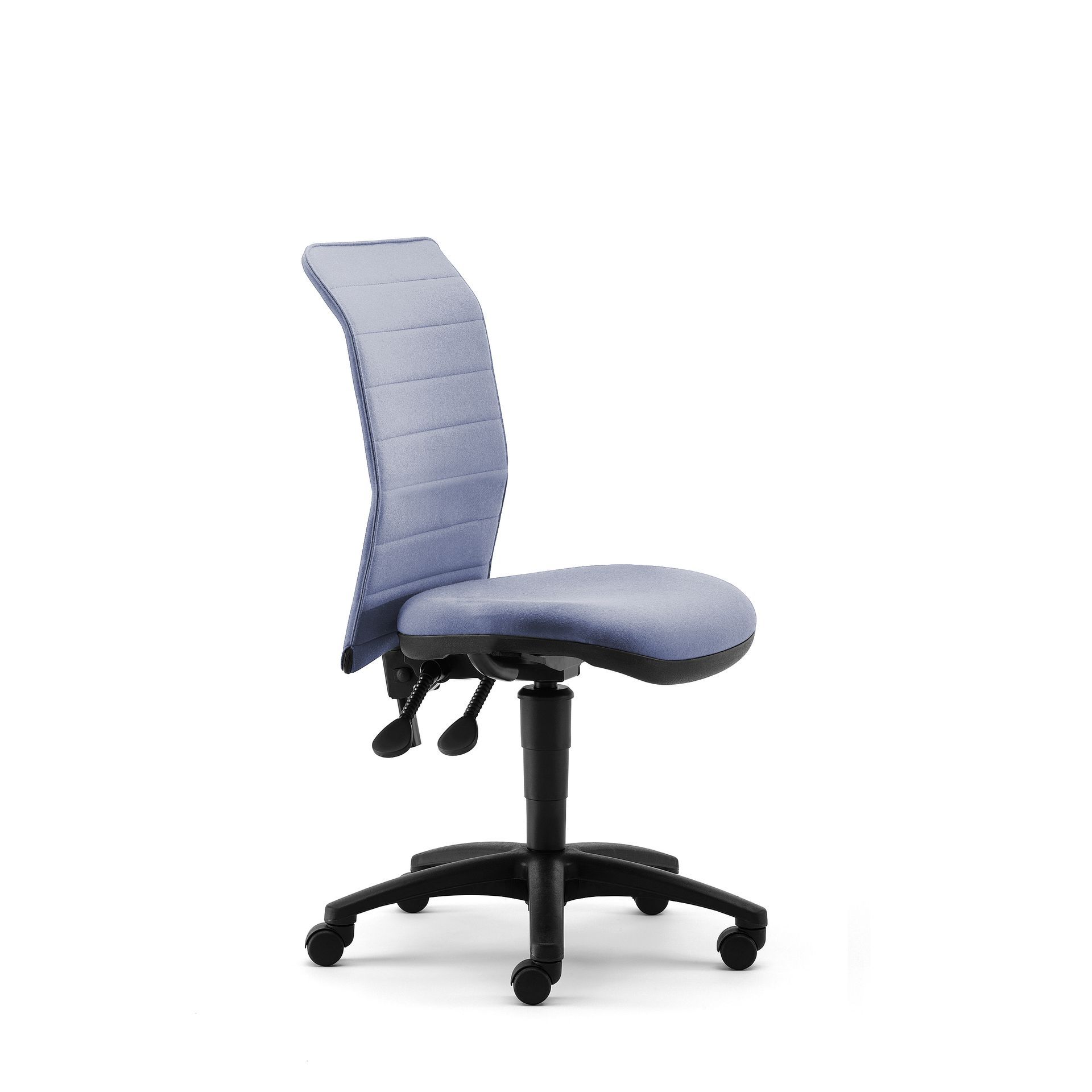

AIR04B
Upholstered task chair
No arms
Back rake mechanism
Height adjustable ribbed back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 480 |
| Back Width | 420 |
| WEIGHT | 11.2 kg |
|---|

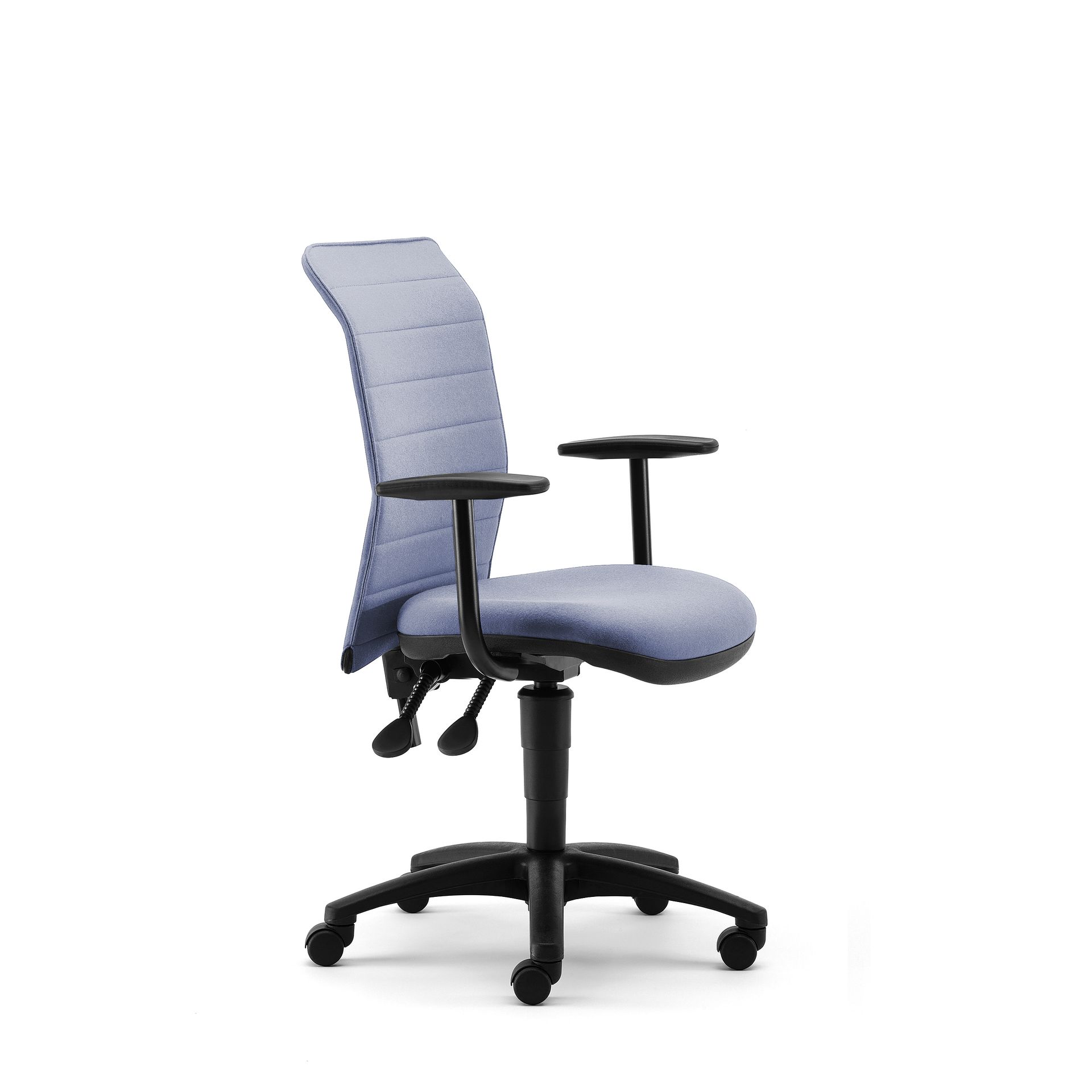

AIR05B
Upholstered task chair
Fixed T arms
Back rake mechanism
Height adjustable ribbed back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| WEIGHT | 12.6 kg |
|---|

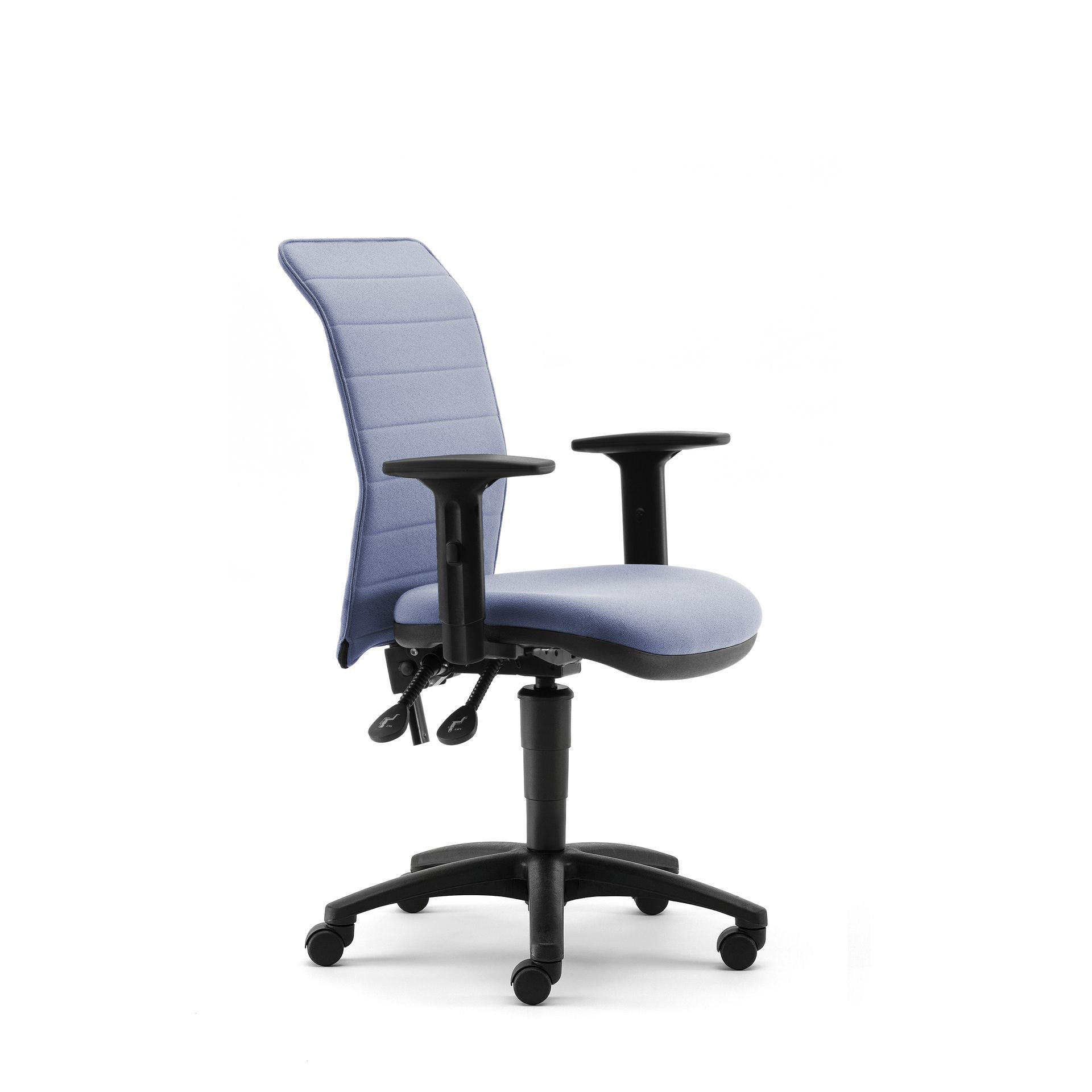

AIR06B
Upholstered task chair
Height adjustable arms
Back rake mechanism
Height adjustable ribbed back
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 450 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| Arm Height | 190 - 270 |
| WEIGHT | 13 kg |
|---|

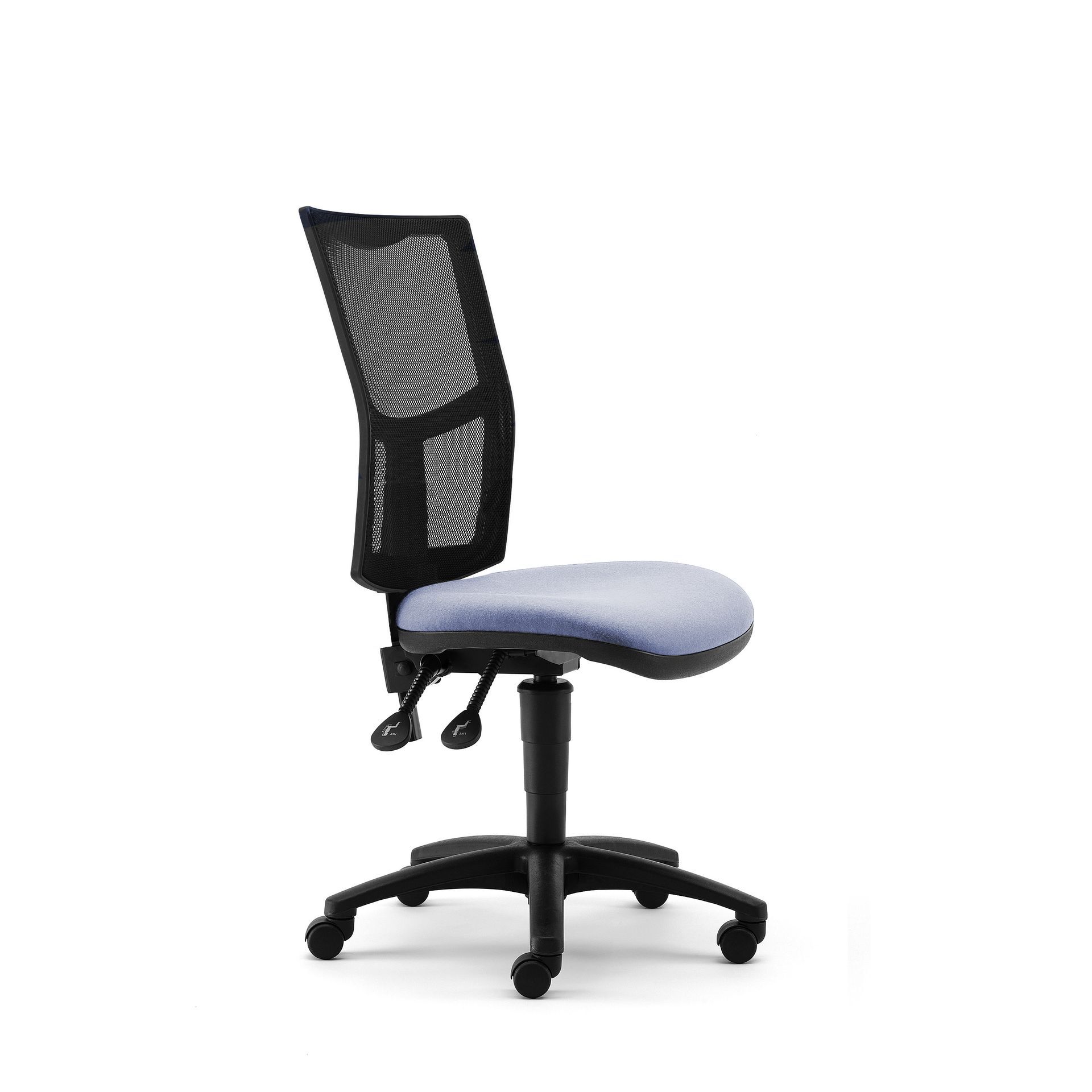

AIR24B
Structured back task chair
No arms
Back rake mechanism
Height adjustable polypropylene structured back with mesh
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 430 |
| Overall Depth | 550 |
| Overall Width | 480 |
| Back Width | 420 |
| WEIGHT | 8.9 kg |
|---|

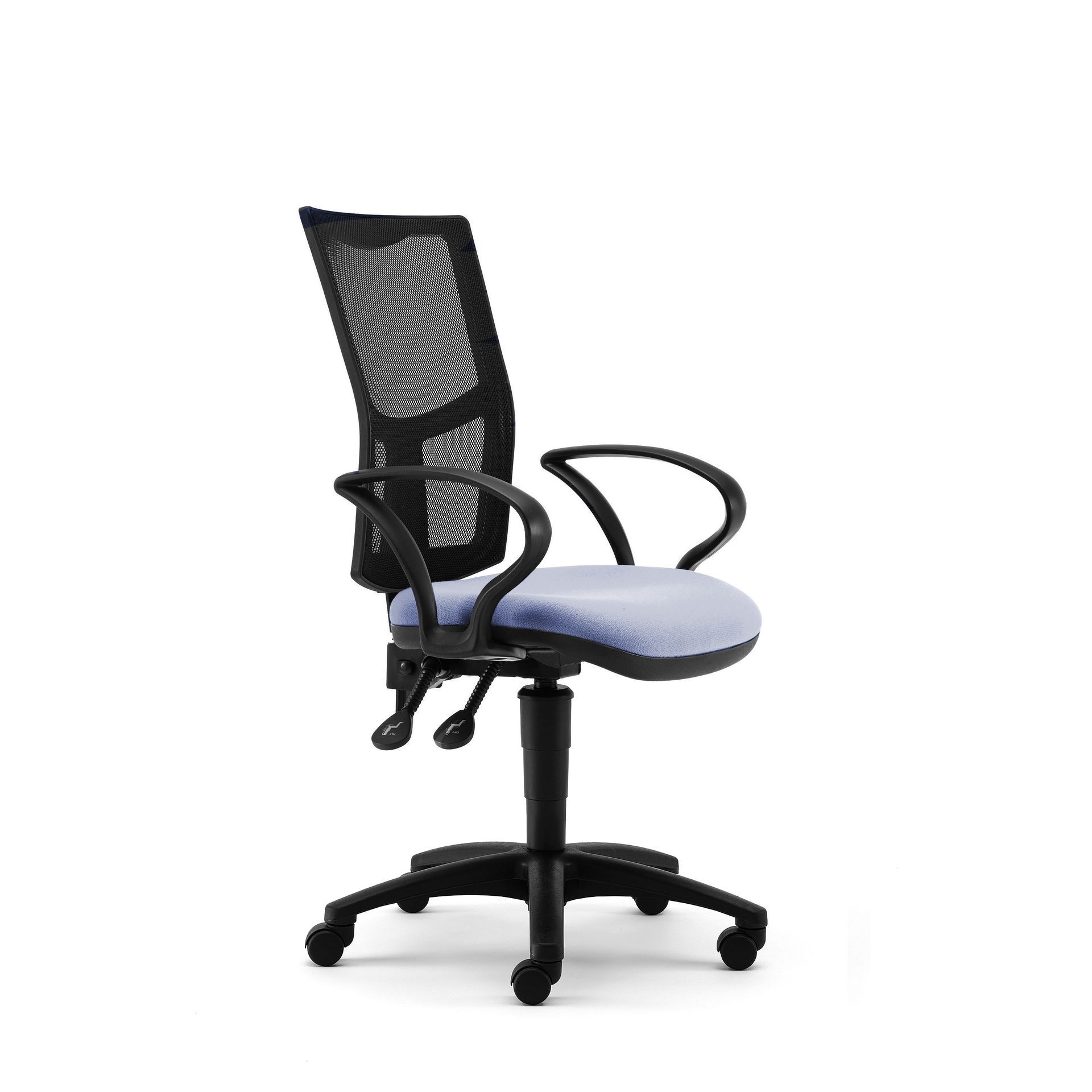

AIR25B
Structured back task chair
Fixed T arms
Back rake mechanism
Height adjustable polypropylene structured back with mesh
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 430 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| WEIGHT | 10.4 kg |
|---|

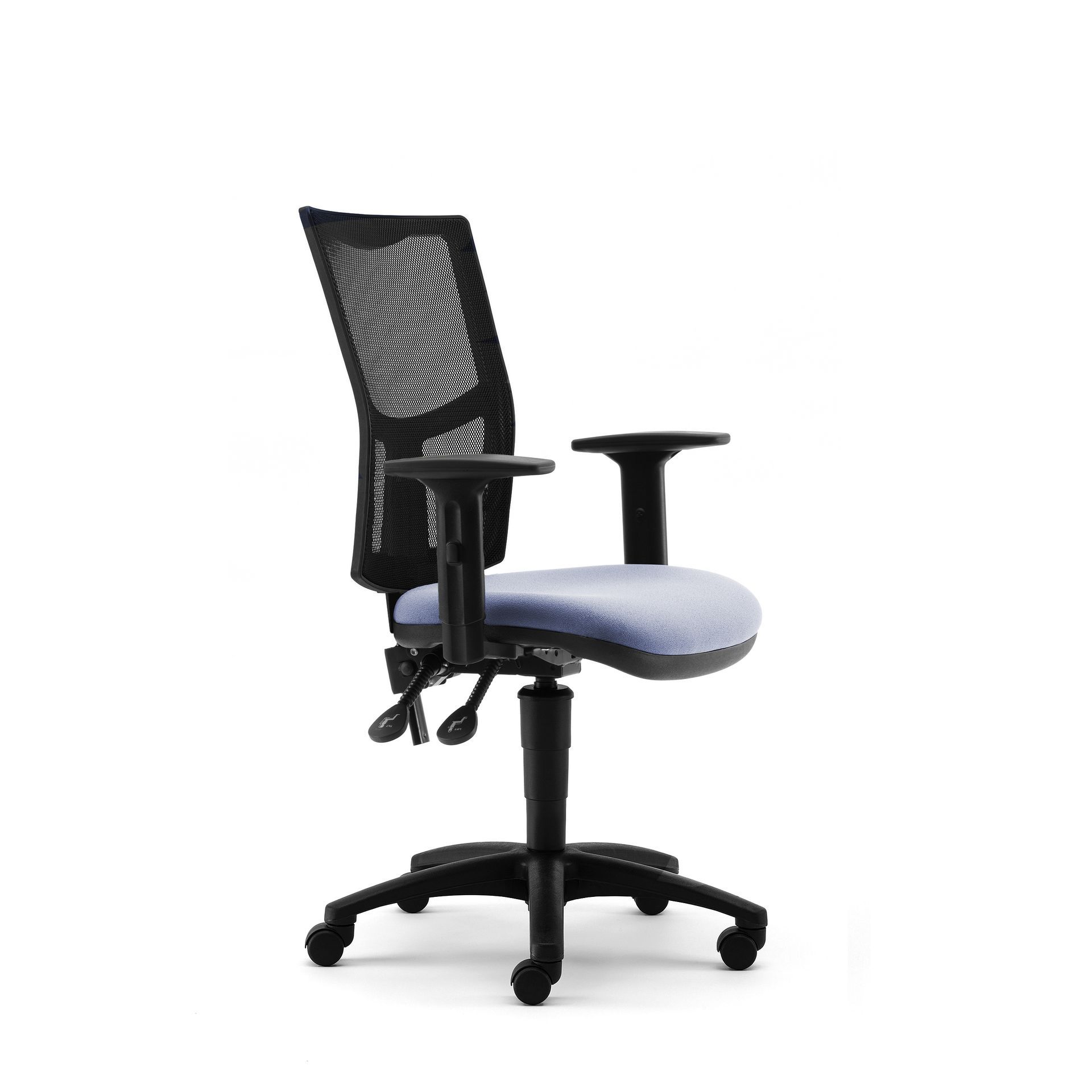

AIR26B
Structured back task chair
Adjustable arms
Back rake mechanism
Height adjustable polypropylene structured back with mesh
CMHR foam
Seat height adjustment
Black nylon base with twin wheel hooded castors
Black finish
| DIMENSIONS | mm |
|---|---|
| Back Height | 500 - 560 |
| Seat Height | 420 - 530 |
| Seat Depth | 430 |
| Overall Depth | 550 |
| Overall Width | 620 |
| Back Width | 420 |
| Arm Height | 190 - 270 |
| WEIGHT | 11.6 kg |
|---|

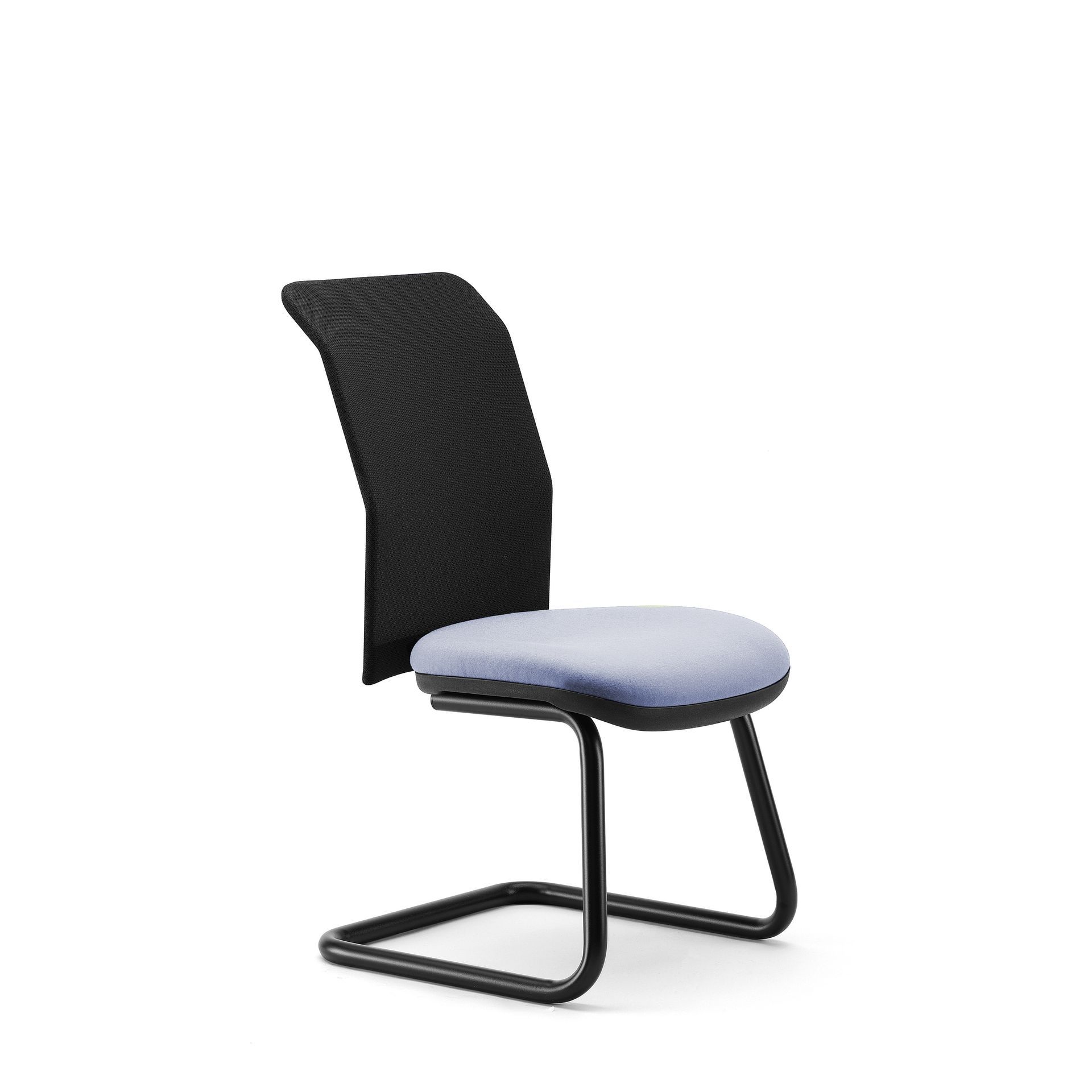

AIRC1B
Mesh back visitor chair
No arms
Cantilever frame
Double mesh membrane back
Black frame
CMHR foam
| DIMENSIONS | mm |
|---|---|
| Back Height | 520 |
| Seat Height | 460 |
| Seat Depth | 450 |
| Overall Depth | 610 |
| Overall Width | 480 |
| Back Width | 420 |
| WEIGHT | 12.6 kg |
|---|
AIRC2B
Mesh back visitor chair
Fixed T arms
Cantilever frame
Double mesh membrane back
Black frame
CMHR foam
| DIMENSIONS | mm |
|---|---|
| Back Height | 520 |
| Seat Height | 460 |
| Seat Depth | 450 |
| Overall Depth | 610 |
| Overall Width | 620 |
| Back Width | 420 |
| Arm Height | 690 |
| WEIGHT | 14.6 kg |
|---|
