ANA BEAM:
BEAM SEATING

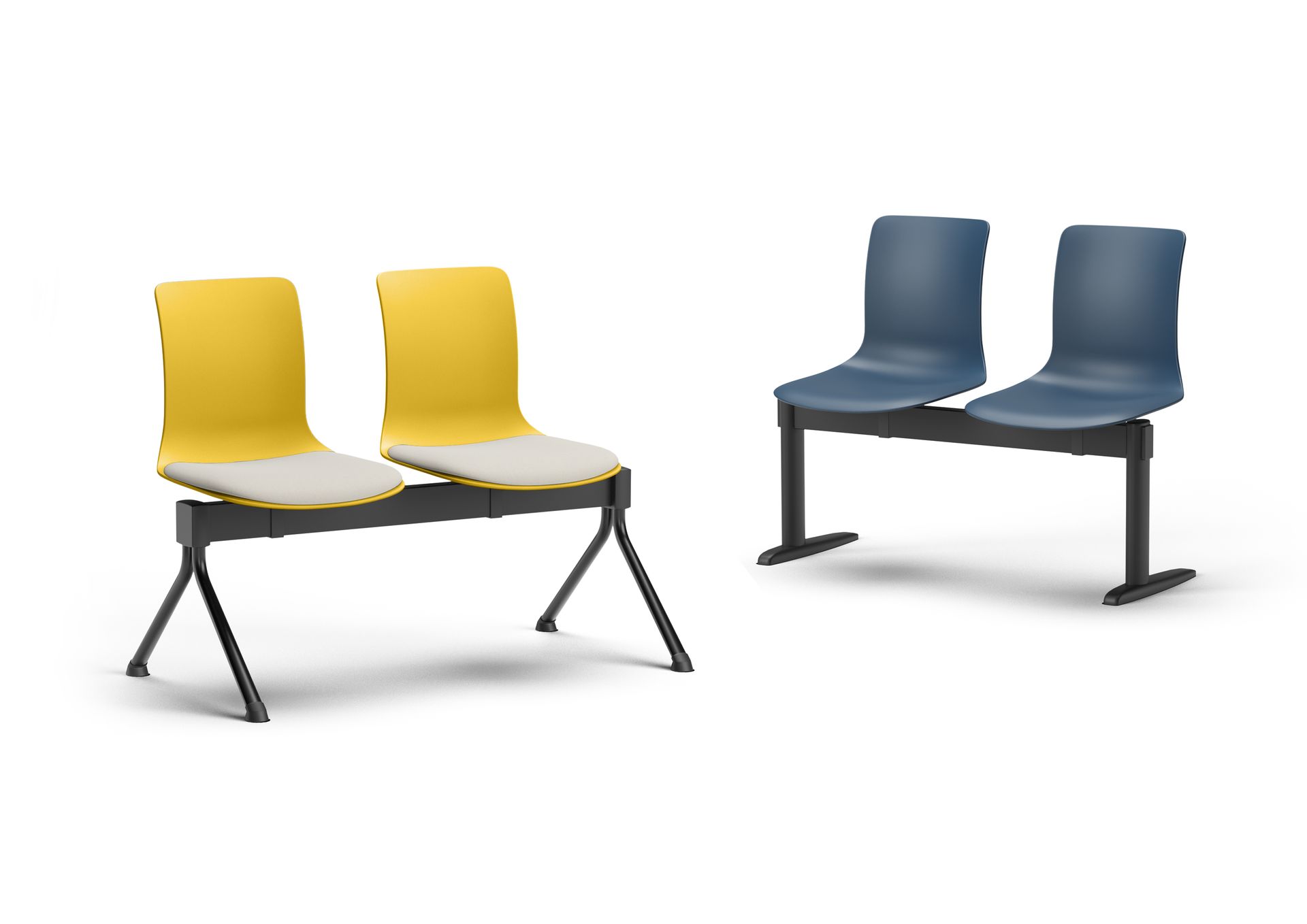

With plastic and upholstered seat pad options Ana beam systems offer a versatile solution for waiting areas and high density seating applications.
The range
Features
SEAT & BACK: PLASTIC
One piece polypropylene shell
SEAT & BACK: UPHOLSTERED SEAT
One piece polypropylene shell with upholstered seat pad
Combustion Modified High Resilience (CMHR) foam
BEAM
80 mm x 40 mm x 2 mm steel beam section
LEGS
Tubular shaped steel ‘V’ legs
Adjustable nylon feet
OPTIONS
LEG FINISHES
Silver legs (RAL9006)
Chrome legs
TABLES
Light oak laminated top
Black MFC top
MISC OPTIONS & NOTES
Floor fixing (T-shaped leg)
Non-slip feet
ENVIRONMENTAL
CO2 DATA
The organisational Green House Gas intensity for an item in this range, based on average product weight and total Green House Gas Emissions recorded within the 1st June 2022 to 31st May 2023 company inventory, is 0.0126 tonnes CO2e/item. (QC: Blue Marble Environmental Partnerships Ltd)
RECYCLED CONTENT
50% (estimated)
RECYCLABLE CONTENT
98%
Plastic components >25 g are labelled in accordance with ISO 11469.
POLICY
Pledge Chairs prefer where possible to manufacture a complete product from raw materials, constructing wooden components and panels, steel fabricated frames, and upholstered products at our site in Leighton Buzzard, Bedfordshire, UK.
We are committed to the efficient use of energy and continually review our environmental impact, seeking to utilise technologies which minimise energy and material consumption in our products and services.
RESOURCES
Click to download images, CAD blocks, literature or certification documents.
Please get in touch if you would like any more information on this, or any other Pledge range.
PRODUCT TECHNICAL DATA
ANA-1CCB

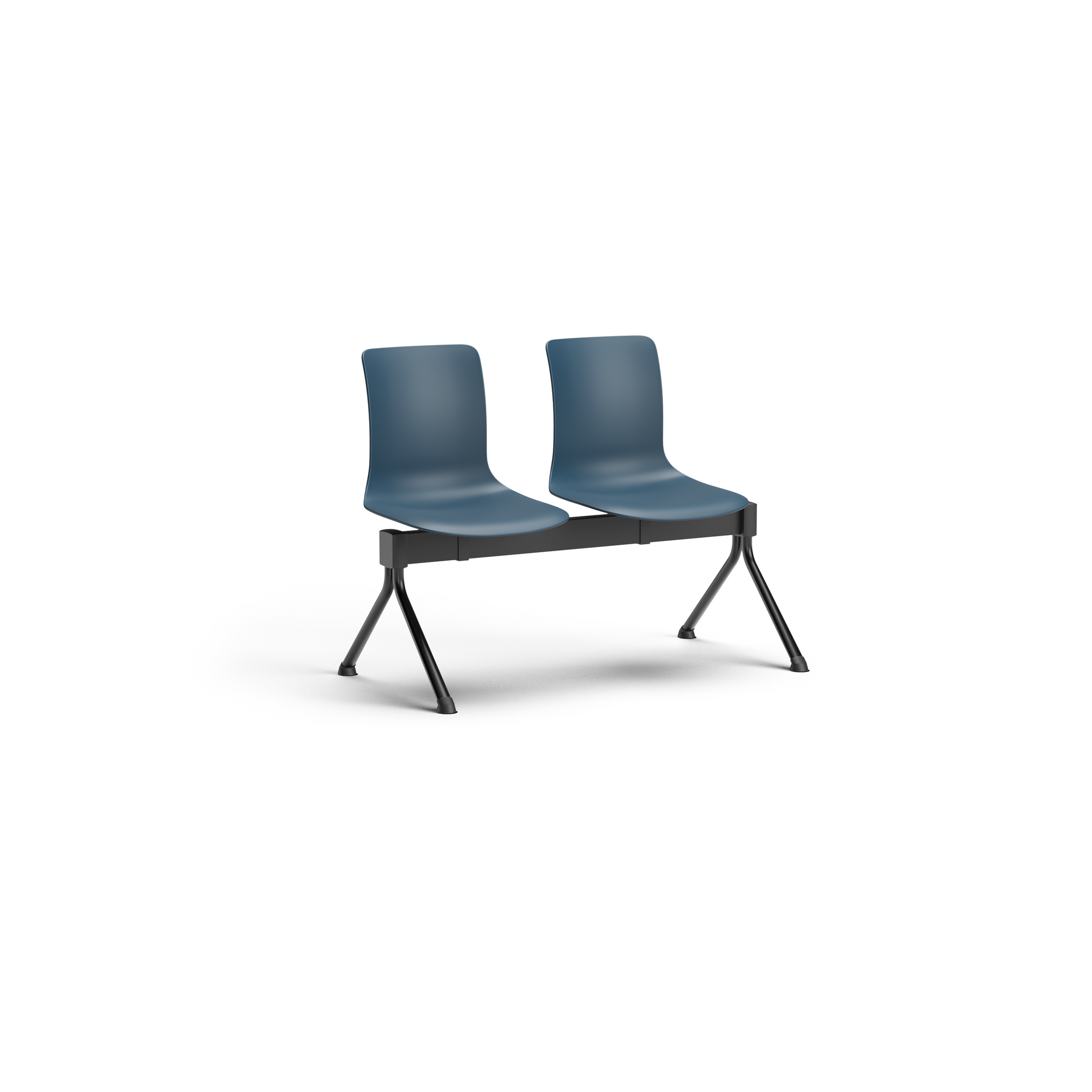

Two seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 1100 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-1cccb

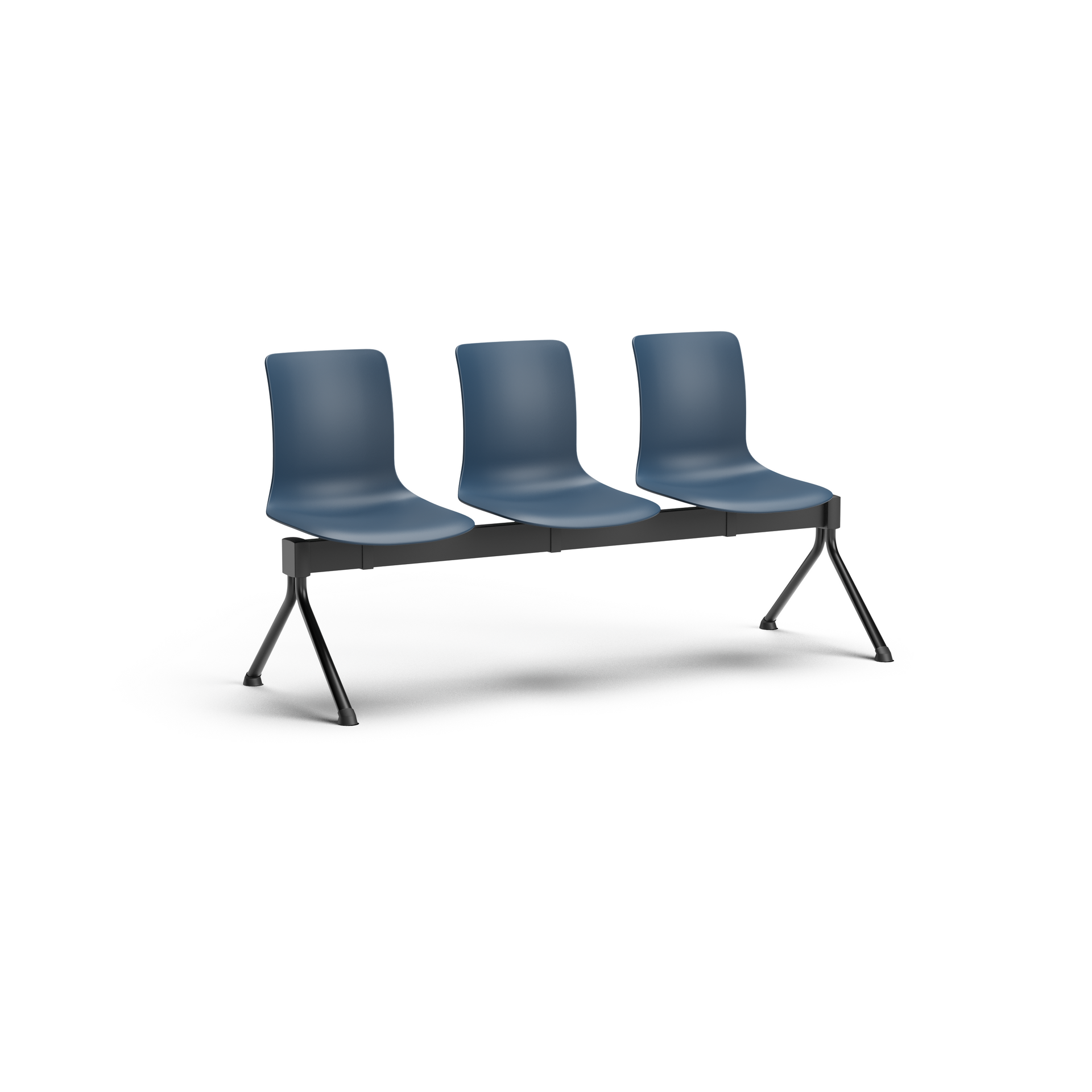

Three seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 1610 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-1ccccb
Four seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 2140 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-1cccccb

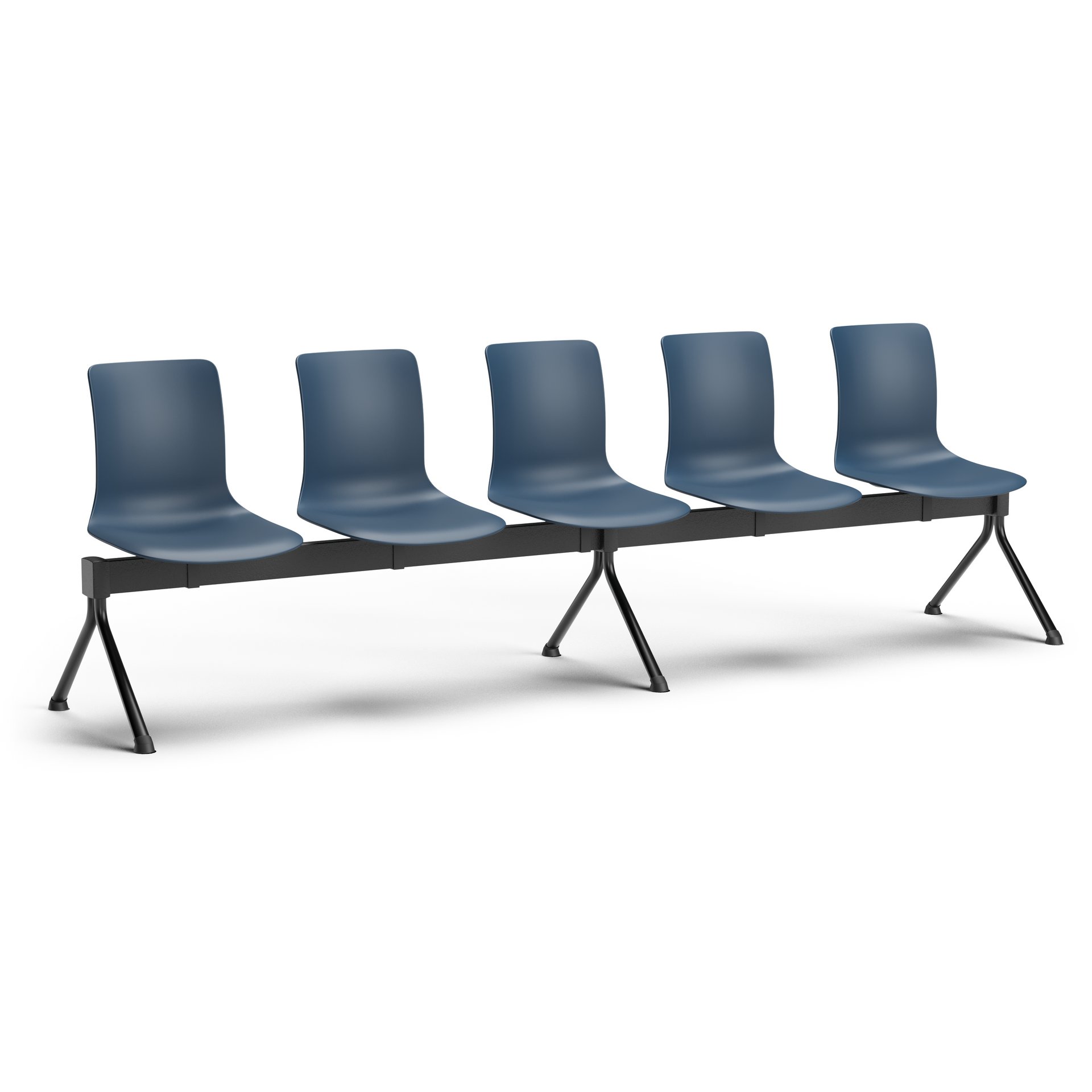

Five seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 2140 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-3ccb

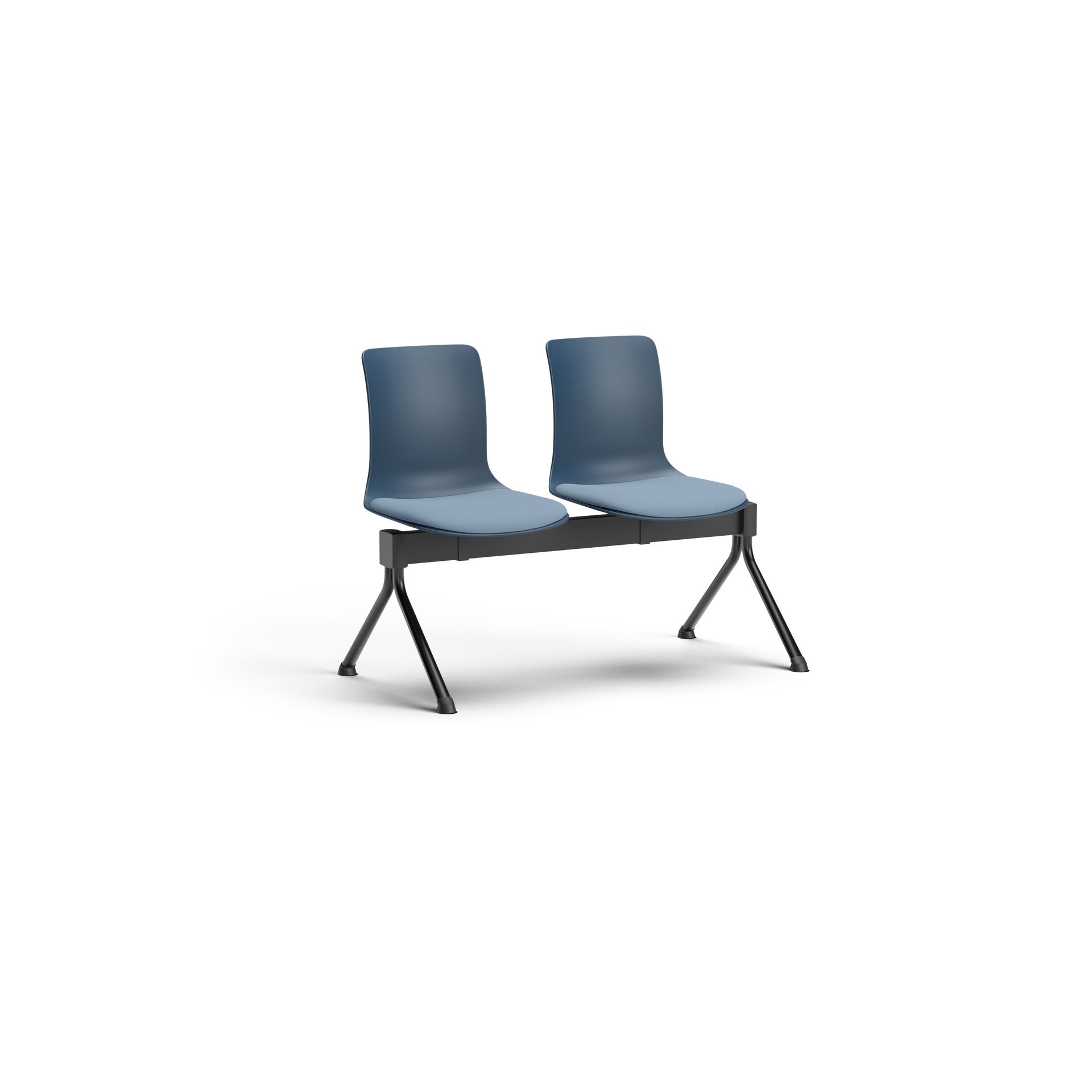

Two seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 1100 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-3ccCb

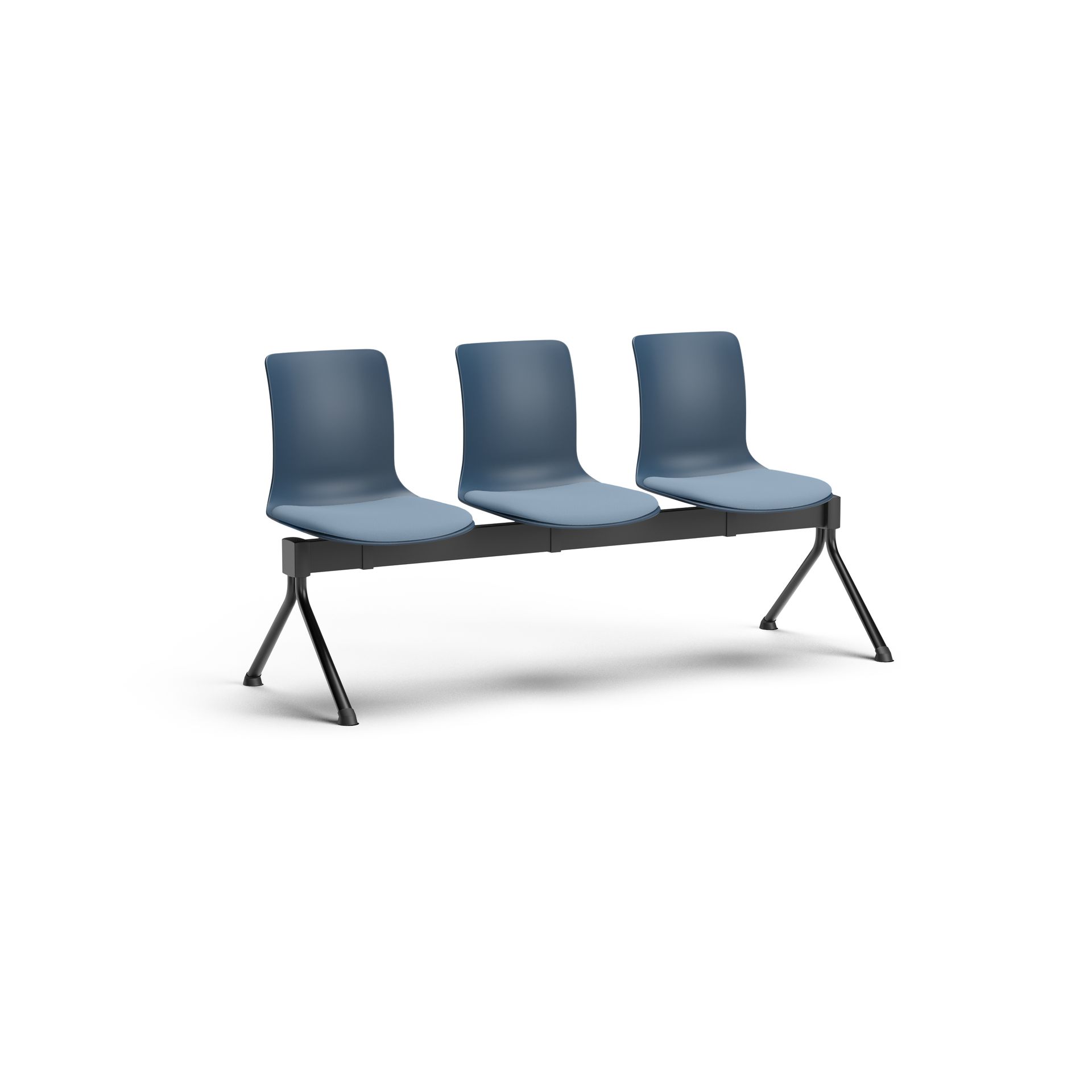

Three seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 1610 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-3cccCb

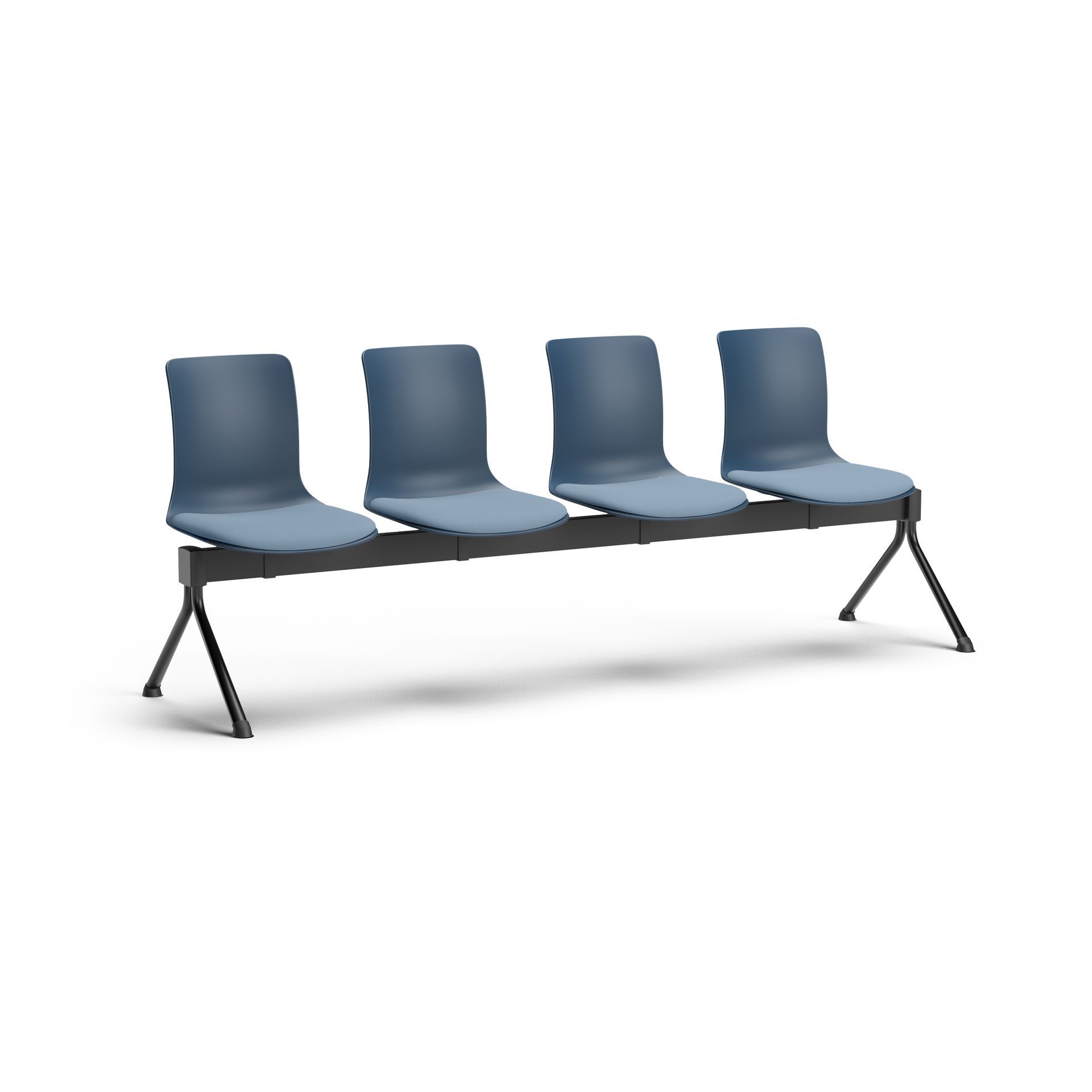

Four seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 2140 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
ana-3cccCb

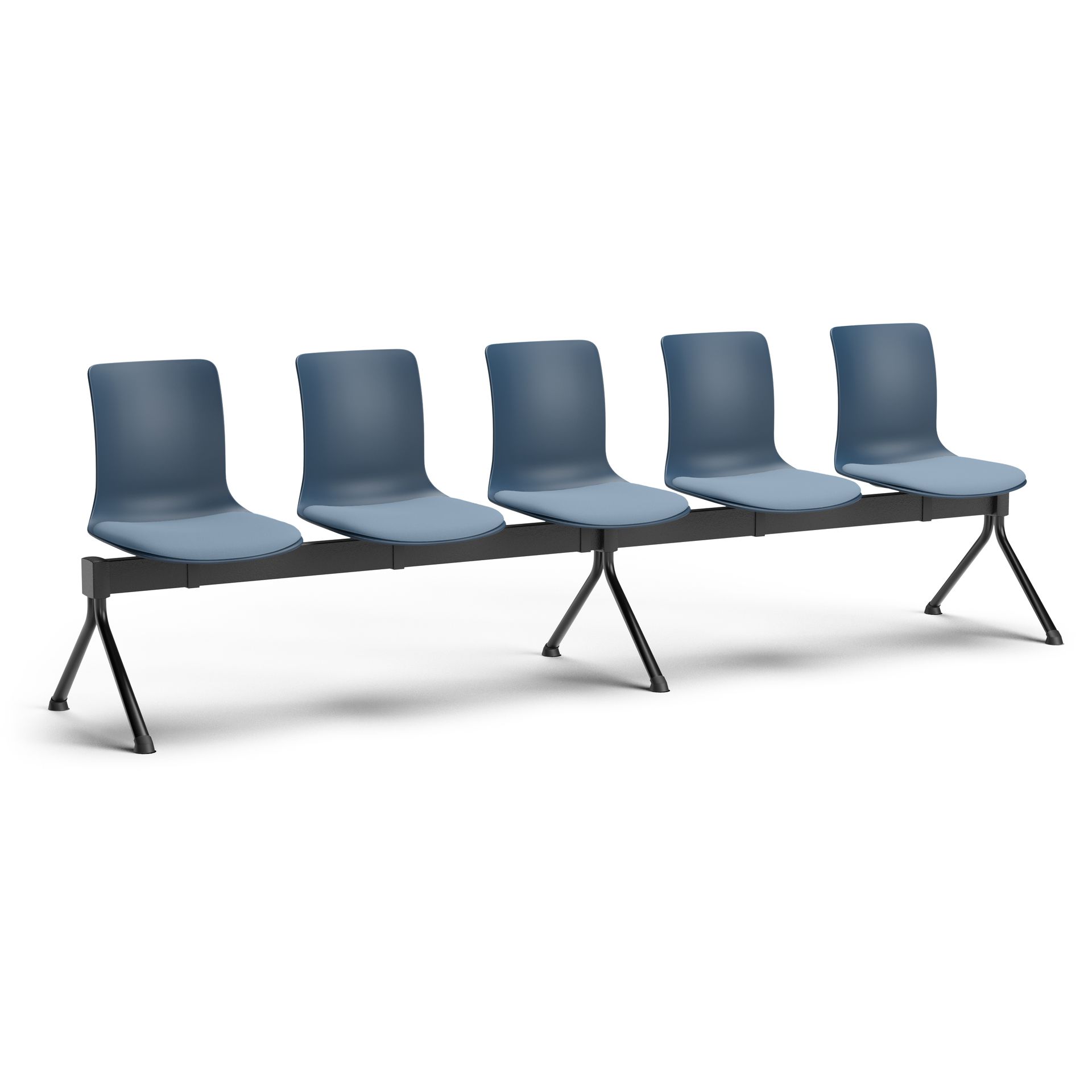

Five seat beam
One piece polypropylene shell
Black tubular steel frame with silver, white or chrome legs
Optional arms, table and floor fixings available
| DIMENSIONS | mm |
|---|---|
| Overall Height | 830 |
| Overall Width | 2670 |
| Overall Depth | 560 |
| Seat Height | 460 |
| Back Width | 330 |
| WEIGHT | kg |
|---|
