PLAN: TASK CHAIRS

Plan combines contemporary design with practicality.


Offered with a choice of mesh or ribbed upholstery, Plan is ideal for use in executive and conference applications.

RESOURCES →

The range

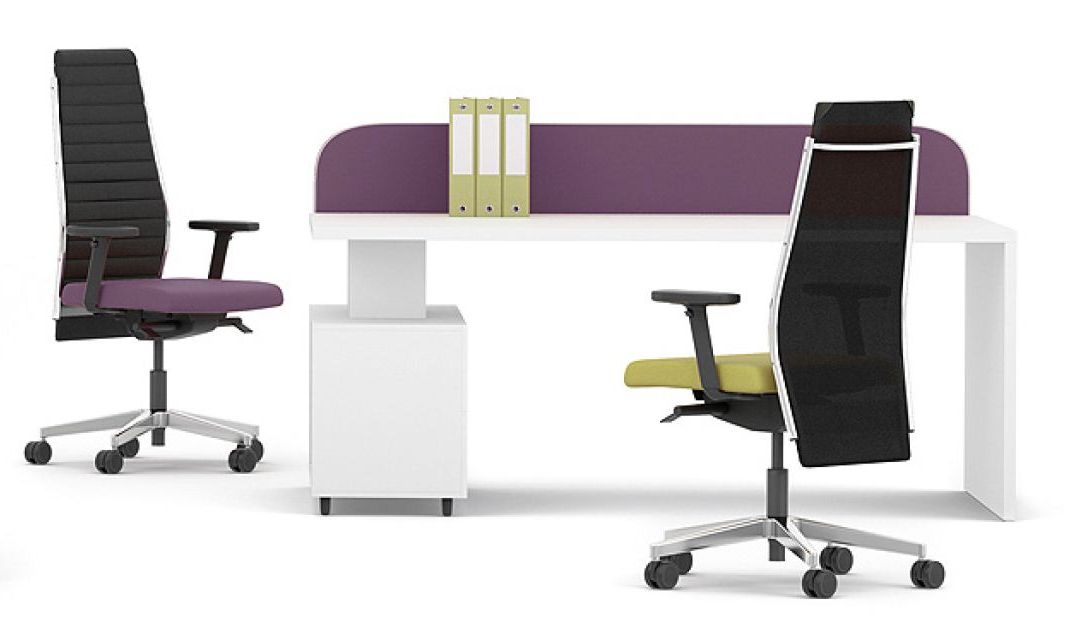

High back task chair
Medium back cantilever chair

Features

STANDARDS

BS EN 1335-1: 2000
BS 5259-2: 2000 & A2 2008
BS EN ISO 9241-5:1999


SYNCHRO MECHANISM
Synchronized mechanism and backrest lockable in various positions with safety (anti-lock) release system
Seat adjustment 6 degrees

Back adjustment 20 degrees
Side operated body weight adjustment


Seat
Upholstered double curvature seat pad
Combustion Modified High Resilience (CMHR) cold cure moulded foam with wooden inner and black linen under seat

Arms
2D adjustable arms (height & width)
Polyurethane arm pads


UPHOLSTERED RIBBED BACK
Combustion Modified High Resilience (CMHR) foam with tubular steel frame


MESH BACK
100% polyester with tubular steel back frame

Gas LiFT
Black outer support cylinder with 120 mm height adjustment suitable for users up to 150 kgs


BASE & CASTORS
Five star glass filled nylon base (67 cm diameter)
6 cm twin wheel polyamide castors
Load capacity 50 kgs per castor (total 250 kgs)

OPTIONS

INDEPENDANT MECHANISM
Independent seat & backrest lockable in various positions with safety (anti-kick) release system
Seat adjustment 12 degrees
Back adjustment 22 degrees
Side operated body weight adjustment


TASK BASE
Silver or polished

ENVIRONMENTAL

CO2 DATA

The organisational Green House Gas intensity for an item in this range, based on average product weight and total Green House Gas Emissions recorded within the 1st June 2022 to 31st May 2023 company inventory, is 0.0162 tonnes CO2e/item. (QC: Blue Marble Environmental Partnerships Ltd)


RECYCLED CONTENT
35% (estimated)


RECYCLABLE CONTENT
98%

Plastic components >25g are labelled in accordance with ISO 11469.


POLICY
Pledge Chairs prefer where possible to manufacture a complete product from raw materials, constructing wooden components and panels, steel fabricated frames, and upholstered products at our site in Leighton Buzzard, Bedfordshire, UK.


We are committed to the efficient use of energy and continually review our environmental impact, seeking to utilise technologies which minimise energy and material consumption in our products and services.

RESOURCES

Click to download images, CAD blocks, literature or certification documents.

Please get in touch if you would like any more information on this, or any other Pledge range.

PRODUCT TECHNICAL DATA

PN58B

High back task chair

2D height & width adjustable arms
Synchro mechanism with side tension adjustment
High back
Upholstered back with chrome support
Seat height adjustment
CMHR foam
6cm twin wheel castors
Black nylon base

DIMENSIONS mm
Back Height 650
Seat Height 450 - 540
Seat Depth 470
Overall Depth 570
Overall Height 630
Back Width 450
Arm Height 180 - 260
WEIGHT 20 kg
RESOURCES →

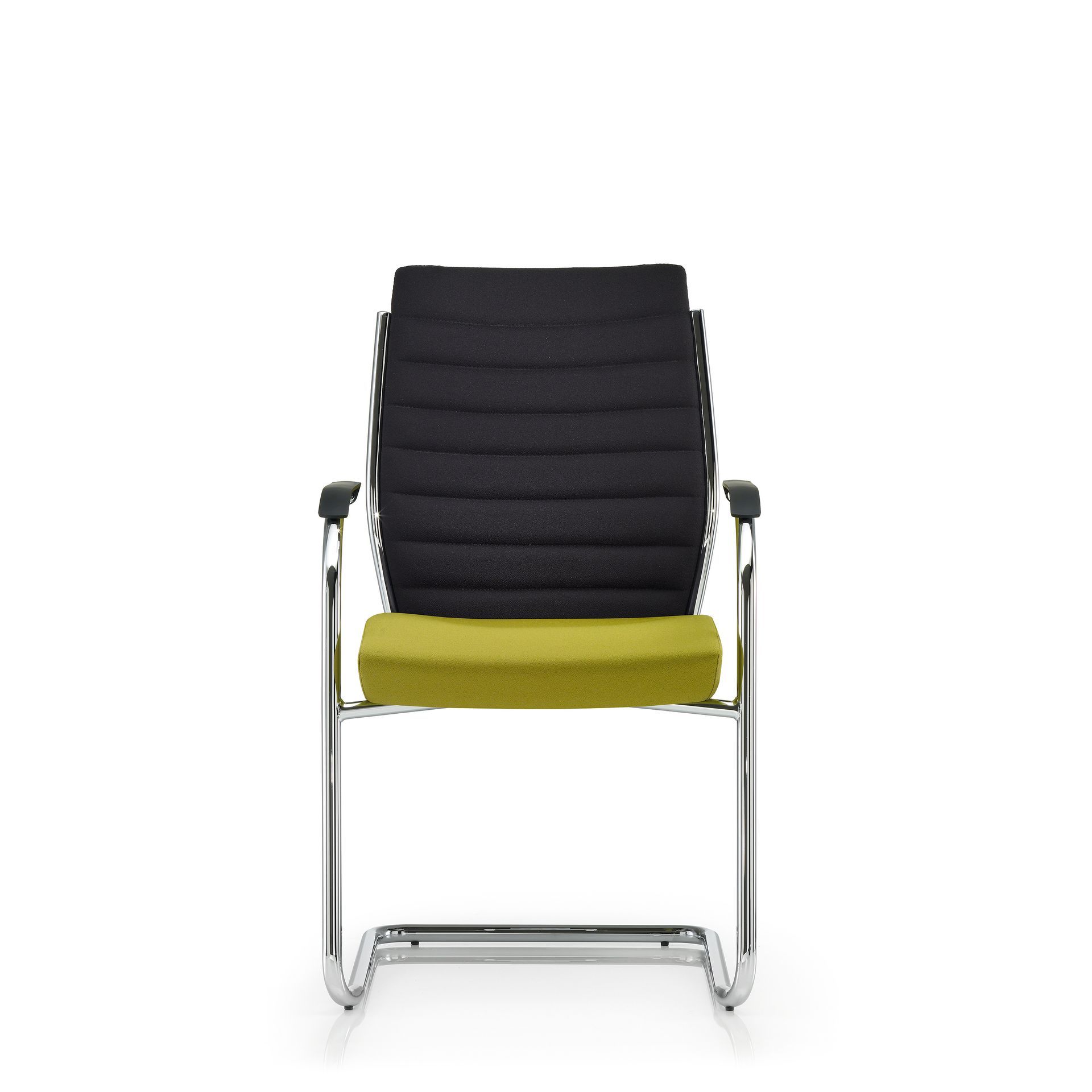

PN21C

Medium back cantilever chair

Self arms
Cantilever frame
Medium back
Upholstered back with chrome support
CMHR foam
Chrome frame

DIMENSIONS mm
Back Height 450
Seat Height 550
Seat Depth 450
Overall Depth 550
Overall Height 490
Back Width 450
Arm Height 670
WEIGHT 17.1 kg
